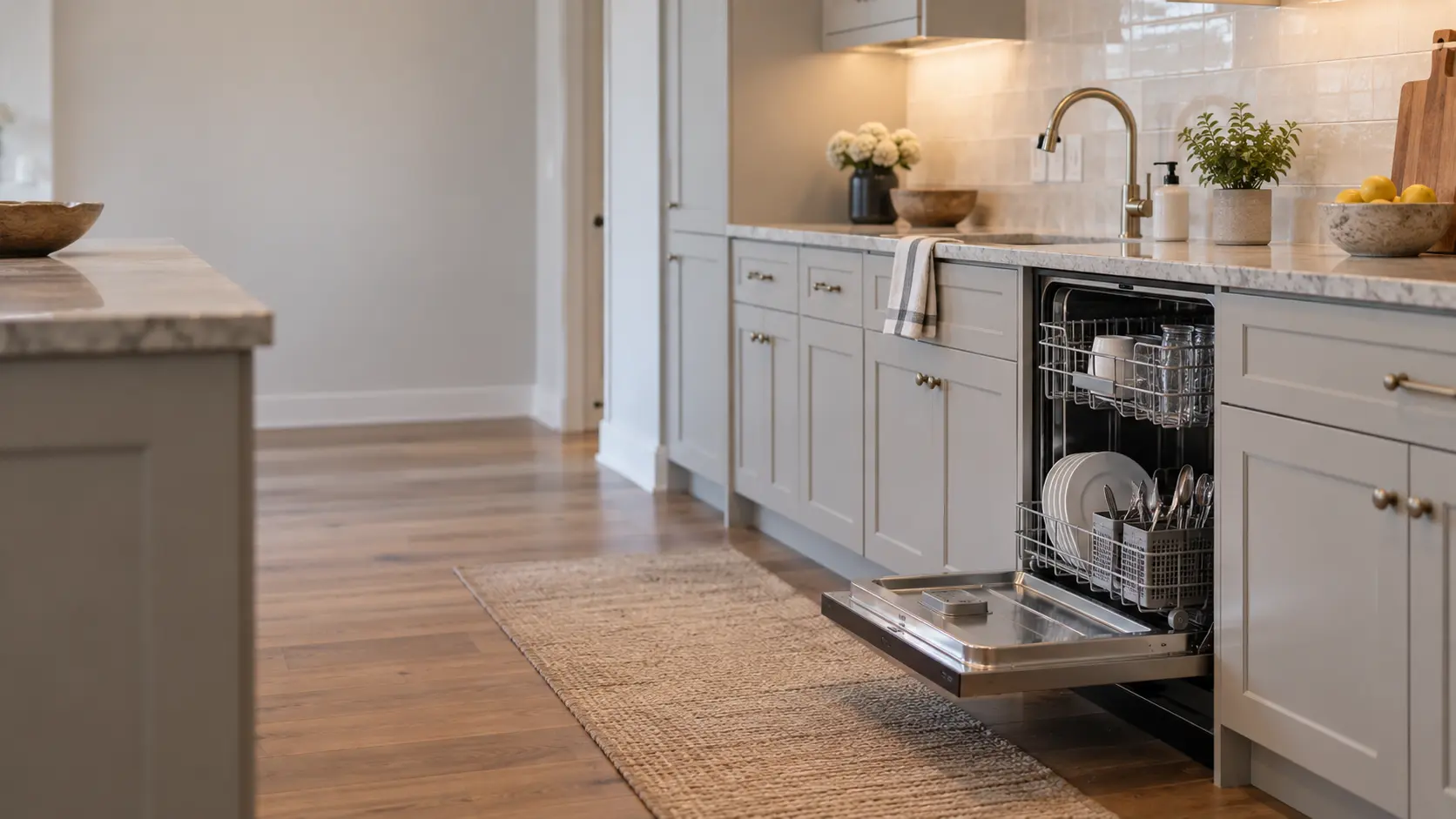

An integrated dishwasher door stands open in a run of painted shaker cabinets in a US home kitchen.

Panel-Ready
Dishwasher Repair

Hidden behind a cabinet door, controlled from the top edge, and repaired with the panel's weight in mind.

(844) 430-4286

Mon–Sat, 8am–8pm

  • 4 things that fail on it
  • 17 makes build it
  • 6 problems it shows

Book a visit

Three short steps, about a minute.

or call (844) 430-4286

Is yours
a panel-ready?

A panel-ready dishwasher, also called integrated or fully concealed, carries a front panel that matches the kitchen cabinetry. The controls sit along the top edge of the door, visible only when it is open, and the machine is usually a premium design with a stainless tub and quieter insulation. The repair questions differ from a standard built-in in two ways: the custom panel has to come off and go back on level, and the door springs have to match the panel's weight or the door will drop or slam.

A technician replaces a hinge spring and cable at the base of a built-in dishwasher in a US home kitchen. What fails on a panel-ready dishwasher

How to tell

01

The dishwasher is not visible when closed. Its door looks like the neighboring cabinets.
02

There are no controls on the front. They are on the top edge of the door.
03

Some models project a light or a status spot on the floor while running.
04

The kick plate often matches the cabinet toe kick rather than the machine.

Not yours?Built-in dishwasherDishwasher drawerCompact dishwasher

What fails
on this design.

On a panel-ready dishwasher: hinge springs and cables, top-edge controls and wiring, circulation pump with built-in heater, leak protection shutdowns.

The problems it shows

Hinge springs and cables

A wood panel adds weight the springs must balance. Springs that were set for a lighter door, or that have worn, let the door fall open or slam.

Top-edge controls and wiring

Moisture and steam reach the control strip each time the door is opened after a cycle. The keypad, the board and the wiring through the hinge are the common failures.

Circulation pump with built-in heater

Many integrated designs heat water in the pump housing. A pump failure then stops both washing and heating, and the part sits at the higher end of the scale.

Leak protection shutdowns

Integrated units often have a base pan and sensor that shut the machine off at the first sign of water. The shutdown is the protection; the leak behind it still has to be found.

Getting at it,
and whether to.

The custom panel is removed for door work and refitted with its gaps matched to the neighboring cabinets.

What repairs cost

On the visit

  1. Door spring tension is set to the panel weight, and a panel that has been replaced may need new springs.
  2. The toe kick is often part of the cabinetry, so it is removed carefully and stored during the visit.
  3. Taller tubs leave little space under the machine. Some parts are reached only after the unit is pulled forward.

Repair or replace

A panel-ready dishwasher is tied to its cabinet panel and often to a matched kitchen suite. A replacement means fitting and possibly recutting the panel, so the repair remains worthwhile further up the cost scale than on a standard built-in. The tub is almost always stainless and rarely the reason to give up on the machine.

Book a visit for a panel-ready dishwasher

The problems
it shows.

On a panel-ready dishwasher, most often dishwasher door won't latch.

All problems
A dishwasher door standing slightly open with a hand pressing it closed, the latch area on the top edge visible against the countertop.

Dishwasher Door Won't Latch

5 causes, cheapest first

 A close view of a finger pressing a button on a dishwasher's hidden top-edge control strip with the door tilted open, the display dark.

Dishwasher Control Panel Not Responding

5 causes, cheapest first

 A dishwasher door tilted open with a small illuminated display on its top edge showing a short blinking code, a phone held nearby to photograph it.

Dishwasher Showing an Error Code

5 causes, cheapest first

 An open dishwasher at the end of a cycle with drinking glasses and upturned plastic cups on the top rack, water beads pooled on their bases and a light wisp of steam.

Dishwasher Not Drying Dishes

5 causes, cheapest first

 A dishwasher in a US home kitchen with its door closed and a shallow puddle of water spreading across the tile floor in front of the kick plate. Water or wiring at risk

Dishwasher Leaking Water

6 causes, cheapest first

 A close view of a lower dishwasher rack holding dinner plates with dried food still stuck to them after a cycle, water droplets on the rims.

Dishwasher Not Cleaning Dishes

5 causes, cheapest first

Who builds
a panel-ready.

17 of the makes on this site build a panel-ready dishwasher. Each mark opens that make's own page.

All 27 brands

Panel-ready dishwasher repair,
where we come out.

9 metros, each with its own page.

All service areas

Tampa BayFL · 31 areas

OrlandoFL · 30 areas

Miami / South FloridaFL · 47 areas

New York MetroNY · 75 areas

HoustonTX · 36 areas

ChicagoIL · 50 areas

Los AngelesCA · 95 areas

San DiegoCA · 31 areas

San Francisco Bay AreaCA · 74 areas

A family unloading clean plates from an open dishwasher together in a bright contemporary kitchen, a child handing a plate to a parent
For the heart of your home.

Questions about
panel-ready dishwashers.

Does the cabinet panel have to come off for every repair?
No. Toe kick repairs such as the drain pump, valve and wiring can be reached with the panel on. Door springs, the latch and the control strip usually need the panel removed, and refitting it straight is part of the job.
Why does my panel-ready door drop open?
The hinge springs are not balancing the panel. Either a spring or cable has broken or the springs were never set for this panel's weight. The fix is correctly rated springs, fitted in pairs.
How do I know if a panel-ready dishwasher is running?
Many models use a small light on the floor or a signal on the top edge. If yours shows nothing and the machine is quiet, the display, its light or the control may be the problem rather than the washing itself.
Can a new panel be fitted to my existing dishwasher?
Usually, if it is within the weight and size the machine is designed for. A heavier panel may need different springs, and the mounting screws must go into the door at the right depth to avoid piercing the inner door.
Why does the controls panel on the top edge stop working?
Steam rises into it each time the door is opened after a cycle. Opening the door a crack at the end of a cycle, rather than wide open immediately, reduces the moisture that reaches the controls.

Back to your everyday

Is it a panel-ready dishwasher?

Say so when you book — it changes what the technician brings and how the visit is planned.
