Dishwasher
Circulation Pump and Wash Motor Repair
The motor that throws the water at the dishes, and the most expensive part most dishwashers have.
Mon–Sat, 8am–8pm
- Highest cost band
- 5 steps on the visit
- 4 problems it answers
Book a visit
Three short steps, about a minute.
or call (844) 430-4286
Loading appointment form…
The appointment form couldn’t load. Please try again.
What the dishwasher circulation pump and wash motor repair
involves.

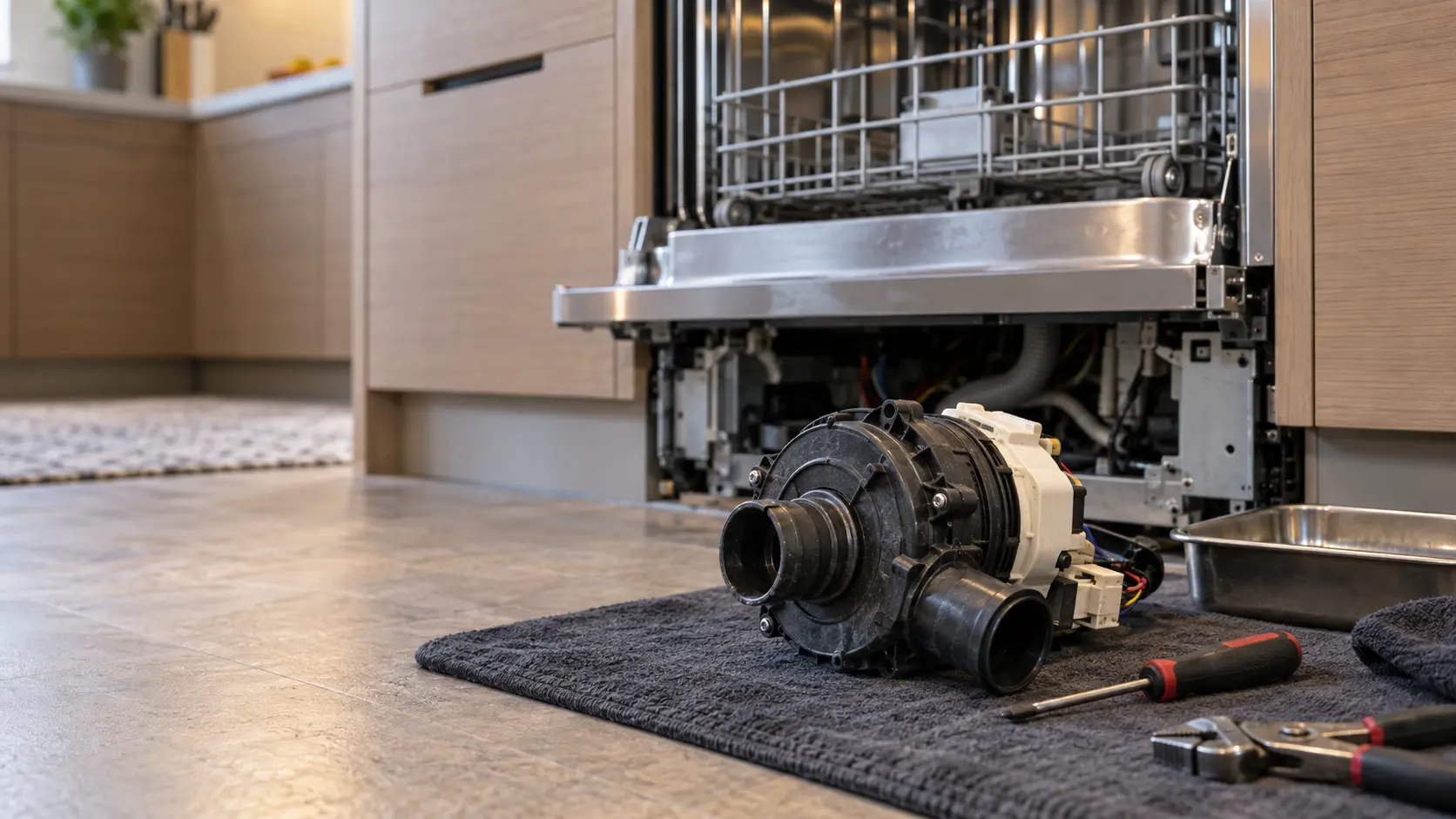

The circulation pump, often called the wash motor, pulls water from the sump and pushes it through the spray arms and the upper wash tube. When it weakens, dishes on the top rack come out dirty while the bottom rack looks acceptable; when it fails, the machine fills, sits silent and drains. On many current designs the heater is built into the same pump housing, so one part covers both. Before the pump is replaced, the spray arms, the filter and the feed tube are cleared, because a blocked path starves a healthy motor.
How the visit goesWhat it usually costsHighest · Circulation pump or wash motor
The largest part in most dishwashers, and the repair where age and model decide whether it is worth doing.
Answers 4 problemsDishwasher Not Cleaning Dishes
Dishwasher Making Loud Noise · Dishwasher Burning Smell · Dishwasher Tripping the Breaker
Comes up most onBuilt-in dishwasher
Panel-ready dishwasher · Dishwasher drawer
Codes that lead hereF45 · F56 · 3C · A6
Asko dishwasher showing F45.
Wash motor and circulation,
step by step.
Tell you plainly when the pump and the age of the machine together make replacement the better choice.
Clear the spray arm jets, the filter and the upper feed tube, then watch whether the arms spin during a wash.
Check power to the motor and test its windings and capacitor, where the design has one.
Listen for bearing noise and look for water tracking out of the pump seal onto the base pan.
Replace the pump assembly and confirm pressure at both racks on a full cycle.
Tell you plainly when the pump and the age of the machine together make replacement the better choice.
The problems
it answers.
4 of them, from dishwasher not cleaning dishes to dishwasher tripping the breaker.
All problems
Dishwasher Not Cleaning Dishes
5 causes, cheapest first
Before you call
Tell us this when you book
- Whether you hear the wash running mid-cycle
- Whether the top rack or both racks are dirty
- Whether there is a grinding or screeching sound
- How old the dishwasher is
It also answers
Highest,
on the site's scale.
The largest part in most dishwashers, and the repair where age and model decide whether it is worth doing.
Read the full cost guide| Repair | Relative cost |
|---|---|
| Filter and spray arm cleaning | |
| Door latch, hinge springs or cables | |
| Drain pump or drain hose | |
| Water inlet valve or float switch | |
| Detergent dispenser assembly | |
| Door gasket, hose or pump seal leak | |
| Heating element, thermistor or high-limit | |
| Control board, keypad or sensor | |
| Circulation pump or wash motor | highest |
Where it
comes up most.
Most bookings: Built-in dishwasher, Panel-ready dishwasher, Dishwasher drawer.
All dishwasher types
The makes
we see it on.
27 makes on this site, and the dishwasher circulation pump and wash motor repair on any of them. Each mark opens that make's own page.
All 27 brandsWash motor and circulation,
where we come out.
The kitchen, the climate and the building all change how the dishwasher circulation pump and wash motor repair goes. These notes are about that, metro by metro.
All service areasTampa BayFL · 31 areas
Scale on spray arm jets and inside the circulation path cuts water pressure in Tampa Bay dishwashers, and the technician measures whether the motor is weak or simply pushing water through narrowed openings.
OrlandoFL · 30 areas
A vacation home near Orlando that runs its dishwasher daily for a week of guests and then sits idle can develop dried debris around the pump, and the first cycle after a quiet stretch is where grinding usually starts.
Miami / South FloridaFL · 47 areas
Wash motor work in a Miami condo is planned around association quiet hours and elevator reservations, so a confirmed diagnosis usually means one return trip with the correct circulation pump rather than several.
New York MetroNY · 75 areas
Compact 18-inch dishwashers are common in New York kitchens, and in a small tub a single shard of glass or a fruit label can jam the circulation impeller and mimic a dead motor.
HoustonTX · 36 areas
Voltage dips and surges during Houston storm season can damage the circuit that drives a wash motor, so the technician checks the control board output as well as the motor itself.
ChicagoIL · 50 areas
In a Chicago winter the incoming Lake Michigan water arrives very cold, so a complaint about poor washing is checked for both circulation and water temperature, since either can leave grease on the dishes.
Los AngelesCA · 95 areas
In hard-water Los Angeles homes, calcium can collect on the circulation pump and chopper blade, so a dishwasher that sounds strained is cleaned and inspected before the motor is replaced.
San DiegoCA · 31 areas
San Diego's mineral-heavy water can block the tiny jets on upper and lower spray arms, and a technician checks arm rotation and jet flow to separate a clogged arm from a failing circulation motor.
San Francisco Bay AreaCA · 74 areas
Bay Area kitchens with soft water sometimes fill with suds that make a wash motor surge and lose pressure, and the technician rules out too much detergent before treating the motor as the problem.
Questions about
the dishwasher circulation pump and wash motor repair.
Is it worth replacing the circulation pump?
Why is the top rack dirty but the bottom rack clean?
What is that grinding noise during the wash?
Why does the breaker trip when the wash starts?
Back to your everyday
Ready to book the dishwasher circulation pump and wash motor repair?
Have these to hand: whether you hear the wash running mid-cycle, whether the top rack or both racks are dirty, whether there is a grinding or screeching sound, how old the dishwasher is.
